UHL with over 60 years of Experience is one of the pioneers of 2D & 3D High Resolution Measuring Microscopes & Hardness Testers in the World. In 2000, UHL took over the complete production program of Measuring Microscopes & Hardness Testers from .Qualified skilled workers are responsible for the series production of devices and assemblies of constantly high quality by using up-to-date (100% CNC) production facilities. Experience gained over a the past few decades forms the basis for the response to a whole variety of different demands made on technical microscopes in accordance to customer specifications.



  MEASURING MICROSCOPE: VMS Ergo



Measuring Range

150(X) x100(Y) x 150mm(Z)

Objective
2:1 with bayonet mount (1:1, 5:1, 10:1 and 20:1 optional)
Resolution
0.001mm (1µm); Optional 0.0001mm (0.1µm)
Accuracy
1.8µm + 0.005 x L (L in mm)
Camera
CMOS color camera with 1280 x 1024 pixels resolution
Illumination

LED Ring Illumination, Coaxial Transmitted & Incident Illumination with base control

Optional Accessories

Measuring System for Coordinate Z, 3 Axes Digital Readout, Software OMS

Back to top

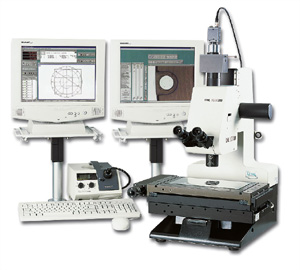

  MEASURING MICROSCOPE: VMM SERIES

MODEL
VMM 100
VMM 150
VMM200

Measuring Range
(X x Y x Z)

100 x 50 x 150mm

150 x 100 x 150mm

150 x 100 x 150mm

Eyepiece
Monocular
Binocular
Binocular
Magnification
10x up to 1000x
10x up to 1000x
10x up to 1000x
Resolution
0.0001mm (0.1µm)
0.0001mm (0.1µm)
0.0001mm (0.1µm)
Accuracy
2.0µm + 0.02 x L
(L in mm)
1.8µm + 0.005 x L
(L in mm)
1.8µm + 0.005 x L
(L in mm)
Optional Accessories

Teleplan / Plan Fluor Objectives, Motorized Axes, Digital Readouts for 2 & 3 Axes (with / without computerized functions), Obliquely incident / Ring Light, Video Camera, Software system QC5300 / QC5000 / OMS / IMS

Back to top

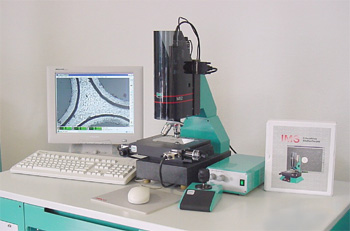

  CNC VIDEO MEASURING MICROSCOPE: MS SERIES

MODEL
MS2
MS3
MS4
Range (Motorized)
(X x Y x Z)

100 x 50 x 50mm

150 x 100 x 50mm

250 x 150 x 50mm

Magnification
10x up to 1000x
10x up to 1000x
10x up to 1000x
Resolution
0.0001mm (0.1µm)
0.0001mm (0.1µm)
0.0001mm (0.1µm)
Accuracy
1.5µm + 0.005 x L
(L in mm)
1.5µm + 0.005 x L
(L in mm)
1.5µm + 0.005 x L
(L in mm)
Software
Software System OMS
Software System OMS
Software System OMS
Optional Accessories

Measuring Stages, Z Axis with / without measurement, Measuring Objectives (Achromatic / Apochromatic / Telecentric), Obliquely incident / Ring Light, Software system UHL IMS.

Back to top

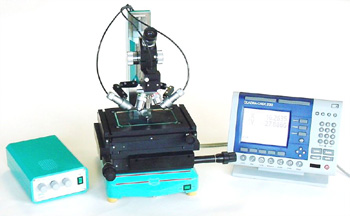

  TOOL MAKER'S MICROSCOPE: WM2 SERIES

MODEL
WM2-MT01
( STANDARD SETUP)
WM2-VT02
( VIDEO SETUP)
Measuring Range
(X x Y x Z)
100 x 50 x 50mm
100 x 50 x 50mm
Magnification
10x up to 1000x
10x up to 1000x
Eyepiece
Monocular
Computer + Software + Video Camera
Resolution
0.0001mm (0.1µm)
0.0001mm (0.1µm)
Accuracy
2.5µm + 0.01 x L
2.5µm + 0.01 x L (L in mm)
Optional Accessories
 Z Axis, Stages (XY Measuring / Cross / Swivel), Obliquely incident / Ring / Transmitted Light, Table System, Optics, Video Camera / Monitor / Digital Readouts / Measuring Computers / Software.
Back to top


  PORTABLE MEASURING MICROSCOPE MS1

Magnification
25x to 800x
Objective
10x to 40x
Eyepiece
10x WF
Resolution
0.01mm (10µm); optional till 0.0001mm (0.1µm)
Accessories

Different measuring Eyepieces, OMS light Software, CCD Color Camera, LED illumination with Lithium Battery
