Sheldon Manufacturing, Inc.
was founded in 1970 with the goal of being a leading manufacturer
worldwide of constant temperature equipment. The company has been
designing and manufacturing equipment for the biotechnology, pharmaceutical,
research and production markets ever since. All aspects of product
design and production are performed in-house, under rigid quality
assurance standards. Experienced personnel and sophisticated metal
fabrication equipment enable it to respond quickly and reliably
to the equipment needs of the market. Automated Flexible Manufacturing
Systems with Large Scale Capabilities, coupled with Skilled Labor
& an extensive Quality Assurance Program ensure tight product
tolerances, increased throughput & quick to market abilities.
|
VACUUM OVEN
|
|
MODEL |
1425-2 |
1445-2 |
1465-2 |
VPX9-2 |
|
Controller
|
Microprocessor PID Control |
|
Volume (Liters)
|
16 |
47 |
128 |
255 |
|
Temperature Range
|
Ambient + 10 to 2400C |
Amb. +10 to 2200C |
|
Shelves Supplied
|
3, Aluminum |
|
Total shelf Area
(cm2)
|
2,070 |
4,750 |
8,400 |
13,000 |
|
Certifications
|
CE |
CE |
CE |
CE |
|
STANDARD FEATURES
|
Double Plenum Design; Microprocessor PID Controller; Independent Over Temperature Protection; Seamless Welded SS Chamber; True Brass Valves with Teflon, Seats for no leaks & longevity, Positive Force Door Latch; Spring Loaded Glass Window, Cross Flow Ventilation, Fine Dosing Valve for Inert Gases, Tempered Black Silicone Gasket for general & High Temperature Applications, 3 Touch Conduction Shelves / Racks, 1" Access Port in rear |
OVENS
|
|
|
NATURAL
CONVECTION / GRAVITY OVENS |
FORCED
AIR OVENS |
| MODEL |
CE3G-2 |
CE5G-2 |
CE3F-2 |
CE5F-2 |
FX14-2 |
FX28-2 |
| Control |
Programmable
Microprocessor; LED Display, Single Set Point, with Timer |
| Volume
(Liters) |
96 |
153 |
85 |
142 |
385 |
793 |
| Temperature
Range |
Ambient
+10 to 2400C |
| Temperature
Uniformity |
±
1.750C @ 1500C |
| Safety |
Independent
Over Temperature Safety |
| Shelves
Supplied |
2 |
2 |
2 |
2 |
3 |
6 |
|
Electrical Connection |
220V; 50Hz; Single Phase |
|
|
| |
CLEAN
ROOM OVENS |
HIGH
PERFORMANCE FORCED AIR OVENS |
| MODEL |
CR1-2
Class 100 |
HF2-2
Inert Gas |
HF4-2 |
HF10-2 |
HF15-2
2 Door |
GS10-2 |
HF37-2 |
| Controls |
24 Step
Programmable Microprocessor with timer; LED Display |
| Volume
(Liters) |
105 |
125 |
125 |
305 |
392 |
- |
972 |
| Temperature
Range (Ambient
+15 to...) |
2500C |
3000C |
2600C |
| Safety |
Independent Over Temperature Safety |
| Timer
Range |
Each Step has 1 minute to 99 Hours & 59 Minutes |
| Stainless
Steel Shelves |
2 |
2 |
2 |
3 |
6 |
- |
12 |
| Electrical
Connection |
220V; 50Hz; Single Phase |

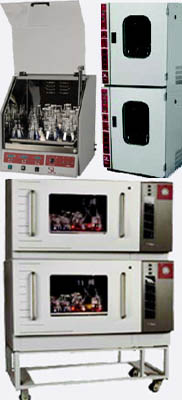

INCUBATOR SHAKERS
|
MODEL |
SI4-2 |
SI6-2 |
SI9-2 |
SI6R-2 |
SI9R-2 |
| Chamber Capacity |
113 Liters |
164 Liters |
306 Liters |
164 Liters |
306 Liters |
| Temperature Range |
Ambient + 50C to 600C |
Ambient - 200C to 600C |
| Shaking Capacity |
8 Kg |
12Kg |
20 Kg |
12Kg |
20 Kg |
| Shaking Speed |
25 - 400 rpm; ± 1rpm (High Speed Models also available upto 800rpm!) |
| Stroke Length |
1.9cm (Fixed) |
1.3 / 1.9 / 2.54 cm (Adjustable) |
| Alarm Function |
Temperature ±0.50C; Speed ± 1rpm; Time at Expiration |
| Shelves Supplied |
N/A |
2, Stainless Steel |
N/A |
2, Stainless Steel |
N/A |
| Platform Size (wxdxh) |
44 x 44 cm |
56x81cm |
44x44cm |
56x81cm |
| STANDARD FEATURES |
Microprocessor Control; Temp., RPM & Time Alarms, Independent Over Temperature Protection, Digital Keypad, Stainless Steel Interiors, Large LED Display; Self Centering Tool-less Lift out Universal Platform Design, 4 Post Counterbalanced Drive mechanism, Door Interlock Switch, Universal Platform |
|
SPECIAL FEATURES |
Transparent Hood |
Internal Electrical Outlet & Light, 2 Nos. Stationary Shelves |
| Flask Size (ml) |
25 |
50 |
125 |
250 |
500 |
1000 |
2000 |
4000 |
6000 |
Fernbach |
Test Tube |
Micro Plate |
Platform Capacity
( SI4 / SI6 / SI6R-2) |
64 |
50 |
25 |
20 |
16 |
12 |
5 |
4 |
2 |
2 |
300 |
12 |
Platform Capacity
(SI9 /SI9R-2) |
125 |
110 |
75 |
55 |
25 |
20 |
12 |
10 |
5 |
3 |
700 |
22 |
|
|
 |
MODEL |
3503-2 |
5215-2* |
3552-2*
High Heat |
3517-2* |
2406-2* |
2428-2 |
| Chamber Capacity |
50 Ltr. |
160Ltr. |
164 Ltr. |
170 Ltr. |
190 Ltr. |
793 Ltr. |
| Jacket Type |
Water |
Air |
Water |
Air |
| Temperature Range |
Ambient + 50C to 600C |
Ambient + 50C to 1800C |
Ambient + 50C to 600C |
| CO2 Sensor |
IR (Infrared) |
| CO2 Range |
0 to 20% |
| CO2 Resolution |
±0.1% |
| Humidity Range |
Ambient to 95% |
| Temperature Alarm |
±10C |
| CO2 Alarm |
±1% |
| Shelves Supplied / Max. |
3 / 8 |
3 / 16 |
3 / 16 |
3 / 16 |
3 / 16 |
6 / 30 |
| Electrical Connections |
220V, 50 Hz, Single Phase |
|
STANDARD FEATURES |
Bright LED Display, Stainless Steel Chamber, Coved (Rounded Corners), Non Tip shelf System, Audio Visual alarms, Microprocessor PID Control, Door Contact Switch for CO2 stoppage, Non Contact Heaters, Heated Outer Door, Removable inner Door Gaskets, Powder Coated Exterior, Heated CO2 Line & Sample Ports, Independent Over temperature Protection, 3 Patented (0.1/ 0.1/ 0.3 Micron) Copper HEPA Filters, Push Button Calibration of Temp. & CO2 (Water Jacket Models: 3 Wall Design; Copper Water Jacket) |
| * indicates models for which Over-Under Stacked Units are available. |
BACTRONTM ANAEROBIC CHAMBER
|
|
MODEL |
Bactron
I-2 |
Bactron
II-2 |
Bactron
III-2 |
Bactron
IV-2 |
Bactron
X-2 |
| Air Lock
Volume (Liters) |
17 |
38 |
17 |
38 |
38 |
| Working
Chamber Volume (Liters) |
346 |
444 |
348 |
444 |
444 |
| Incubator
Volume (Liters) |
34 |
46 |
53 |
126 |
N / A |
| Petriplate
Capacity |
100+ |
200+ |
308+ |
600+ / 900+ |
N / A |
Incubator
Performance |
| Temperature
Range |
Ambient
+5 to 700C |
N / A |
| Temperature
Uniformity |
±
0.10C @ 370C |
N / A |
Interior
Dimensions |
|
| Air Lock
(wxdxh) |
23x32x24 |
31x36x31 |
23x28x23 |
31x36x31 |
30x36031 |
| Chamber
(wxdxh) |
84x73x64 |
108x73x64 |
84x73x64 |
107x73x63 |
107x73x63 |
| Incubator
(wxdxh) |
68x24x23 |
92x24x21 |
70x35x22 |
Φ59x47 |
N/A |
| Certifications |
UL; cUL; CE |
UL; cUL; CE |
UL; cUL; CE |
UL; cUL; CE |
UL; cUL; CE |
| STANDARD FEATURES |
PID temperature Controller, Air tight construction; Patented Bare hand (Gloveless) operation, Positive Pressure relief System, Seamless Stainless Steel Chamber, Condensate controller & Catalyst remove trace oxygen, Tube inline filter for gas purity, Integral Vacuum Pump system; Independent Temperature Safety, Interior Electrical Outlet |
INCUBATORS
| |
MODEL |
GI2-2 |
GI7-2 |
GI6-2 |
GI11-2 |
GI12-2 |
RI28-2 |
| Design
of Cabinet |
Single
Door |
2
Door |
Over-Under |
Single
Door |
| Volume
(Liters) |
55 |
164 |
189 |
318 |
170 |
793 |
| Temperature
Range |
Ambient
+5 to 700C |
| Temperature
Uniformity |
±
0.350C @ 370C |
±
0.50C @ 370C |
| Shelves
Supplied |
2 |
3 |
2 |
6 |
| STANDARD
FEATURES |
Microprocessor Control, Digital LED Display, Independent Over Temperature Protection, Gravity Convection, Air Jacket, Triple Wall Construction, Heated Outer Door, Touchpad Temperature Calibration |
| SPECIAL
FEATURES |
1 Interior Electrical Connection, Safety Glass Door
|
BOD INCUBATORS
|
|
MODEL |
LI 5-2 |
LI 15-2* |
LI 20-2 |
LI 27-2 |
| Volume
(Liters) |
85 |
481 |
765 |
| Temperature
Range |
-10
to +450C |
| BOD Bottle
Capacity |
48 |
N / A |
317 |
624 |
| STANDARD FEATURES |
Microprocessor Control; Digital LED Display; Independent Over Temperature Protection; Air Jacket; Triple Wall Construction; Heated Outer Door; Touchpad Temperature Calibration |
| SPECIAL
FEATURES |
1 Interior Electrical Connection.
* LI15 Features Dual Program Selector Dials, allowing control of 2 temperature conditions & ON / OFF illumination cycles relative to the program selected. Each system operates independently. Timers can be set to adjust cycles from 15 minutes to 24 Hours
|
WATER BATHS
|
|
|
BOILING WATERBATHS |
HIGH
PERFORMANCE WATERBATHS |
SPECIALITY
WATERBATHS |
| MODEL |
WHT6M-2 |
WHT14M-2 |
WHT20M-2 |
W2M-2 |
W6M-2 |
W14M-2 |
W20M-2 |
WPC65-2 |
WPC85-2 |
WPC95-2 |
Tank Volume (L) |
6 |
14 |
20 |
2 |
6 |
14 |
20 |
22.1 |
99.7 |
30 |
| Temp.
Range |
Ambient
+5 to 1000C |
Ambient
+5 to 900C |
| STANDARD
FEATURES |
Air Jacket Design; Stainless Steel Tank; Non Contact Heaters; Powder Coated Housing; Recessed Soft Touch Control, LED Display, Calibration, Independent Over-temperature Protection |
SHAKING (RECIPROCATING) WATER BATHS
|
|
MODEL |
WS17-2 |
WS27-2 |
| Tank
Capacity (Litre) |
16 |
29 |
| Temperature
Range |
Ambient
+5 to 950C |
| Oscillation |
Reciprocating |
| Oscillation
Rate |
20
to 200 RPM |
| Stroke
Length |
0.5"
/ 1.0" / 1.5" (Adjustable) |
| Platform
Size (wxdxh) |
11.4"
x 13" x 8" |
11.4"
x 25.3" x 8" |
| STANDARD
FEATURES |
Air Jacket Design; Stainless Steel Tank & Gable; Non Contact Heaters; Powder Coated Housing; Recessed Soft Touch Control; LED Display; Calibration; Independent Over Temperature Protection; Basket Support System for Heavy Loads |
HYBRIDIZATION OVENS
|
|
MODEL |
1013-2 |
| Temperature
Range |
Ambient
+5 to 800C |
| Temperature
Display |
3 Digit
LED |
| Over
Temperature Safety |
Yes |
| Carousel
Capacity |
12 Bottles
(300mm);
24 Bottles (75mm) |
| Carousel
Rotator |
0 - 15 RPM
(Variable) |
| STANDARD
FEATURES |
Microprocessor Control; Independent Thermal Block |
| SPECIAL
FEATURES |
Incremental Jogging Switch; CAM Action Door Latch |
| Optional
Accessories |
Glass Hybridization Bottles (75 / 150 / 225 / 300mm) with Leak-proof Gasket Caps |
|
|
